Digital Pressure Gauge



Digital Pressure Gauge

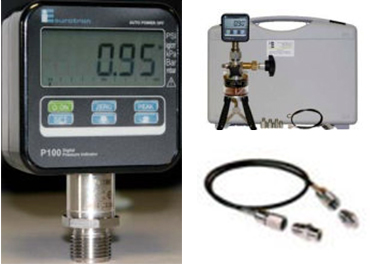

The Eurotron P100 pressure gauge is a new micro-processor controlled digital pressure gauge which offer high precision, stabilityand functionality in a compact and robust solution package. The gauge is powered by long life internal Alkaline battery and offer an auto-power off function in order to preserve the battery life. The sensor technology combined with advance designed feature results in an high accurate yet affordable digital pressure gauge. Supply as stand-alone the MicroCal P100 offer an unbeatable cost effective solution for accurate process monitoring and control. A wide range of hand held pressure pump and kits are available to offer a complete testing solution for maintenance or calibration routine.

P100-PC Pneumatic Test Kits


Combined vacuum/pneumatic kit for pressure testing, includes

  • P100-I indicator, range to be selected up to 50 bar
  • PGS-40-OEM pump
  • PGS-BSP or PGS-NPT set of adaptor, set of seals
  • Pressure hose with 1/4” BSP F adaptor (1 meter)
  • Robust ABS transit case with custom foam

P100-HC Hydraulic Test Kits


Hydraulic test kit for high pressure testing, includes

  • P100-I range to be selected up to 1000 bar
  • PGS-700-OEM or PGS-1000-OEM pump
  • PGS-BSP or PGS-NPT set of adaptor, set of seals
  • HTH-1000-1 high pressure hose, 1 meter
  • PGS700-A-G14 adaptor for HTH-1000 hose
  • PGS700-TC robust ABS transit case with custom foam

Advance Features:

  • Programmable filter from 0 to 99 for pulsing pressure readings
  • Zero function for zero pressure correction
  • Zero function for zero pressure correction
  • Selectable pressure unit: mbar, bar, MPa, KG/CM2, psi
  • Selectable pressure unit: mbar, bar, MPa, KG/CM2, psi
  • RS232 interface (optional)ent for pressure test gauge

Range Code Range Resolution Max Over Pressure
05G -0.5 to 0.5 bar 0.0001 150% FS
1G -850mbar to 1 bar 0.0001 150% FS
2.5G -850mbar to 10 bar 0.0005 150% FS
5G -850mbar to 2.5 bar 0.0005 150% FS
10G -850mbar to 10 bar 0.001 150% FS
20G -850mbar to 20 bar 0.002 150% FS
40G -850mbar to 40 bar 0.005 150% FS
100G 0 to 100 bar 0.01 150% FS
250G 0 to 250 bar 0.02 150% FS
350G 0 to 350 bar 0.05 150% FS
700G 0 to 700 bar 0.05 150% FS
1KG 0 to 1000 bar 0.1 150% FS
1.5KG 0 to 1500 bar 0.2 150% FS
2KG 0 to 2000 bar 0.5 150% FS


Download Technical Datasheet


Download Datasheet
