Eiuk Temperature Bath



Eiuk Temperature Bath

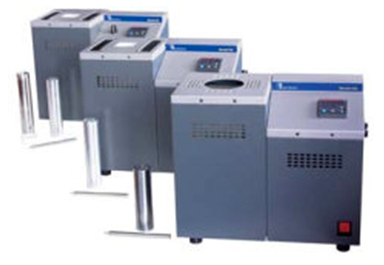

The EiUK ETB series of field dry block calibrator consist of there separate models for calibrating temperature sensors, loop and switches in a temperature range between -48 and 1200 °C. These self-contained units are portable, flexible and are suitable for both field and laboratory temperature calibration. The new range have been introduced to the market to offer a cost effective solutions to our customer whilst meeting a wide range of application

EiUK ETB 650, cover a wide range from 35 to 650 °C over a well dimension of 35 x 160 mm to suit multiple probe testing at the same time. The new Eurotron controller technology ensure high stability and performance. Features

  • from 35 to 650 °C
  • Well to well uniformity to 008 °C
  • Stability 0.02
  • Use as DryBlock, or Infrared source

EiUK ETB1200 cover a high temperature range, but still do not compromise in any technical specification. The advance temperature controller ensure high stability at higher temperature. This calibrator features

  • Wide range from 150 to 1200 °C
  • Excellent stability to 0.15 °C
  • Customised removable insert inserts
  • Use as DryBlock, or Infrared source

EiUK ETB 140 offers 3-in-1 solution The unit cover temperature range from - 55 °C from Tamb to 140 °C. The standard liquid insert convert your dry block in a portable liquid bath, with adjustable speed agitator. When used as liquid bath, TCS 140 enhanced features offers the same specification of a laboratory liquid bath. This calibrator features

  • Wide range from -55 to 140 °C
  • Excellent stability to 0.02 °C
  • Excellent Uniformity to 0.02 °C
  • Reading accuracy ±0.15 °C
  • Use as DryBlock, Liquid bath or Infrared source


<>Standard Features:

Standard Manufacturing Program*:


Parameter ETB 140 ETB 650 ETB 1200
Temperature range -55 to 140 °C (from T ambient) 35 to 650 °C 150 to 1200 °C
Absolute stability (dry Block)
Absolute stability (liquid bath)		 ±0.035 °C @ 140 °C
±0.02 °C @ 140 °C		 ±0.03 °C @ 650 °C ±0.2 °C @ 1100 °C
Radial uniformity (dry Block)
Radial uniformity (liquid bath)		 ±0.02 °C @ 140 °C
±0.004 °C @ 140 °C		 ±0.08 °C @ 650 °C ±0.2 °C @ 1100 °C
Temperature units °C and °F °C and °F °C and °F
Heating Time -30 to 140 °C in 15 minutes 50 to 600 °C in 30 minutes 100 to 1100 °C in 20 Minutes
Cooling Time 140 to 0 °C in 15 minutes 600 to 150 °C in 30 minutes 1100 to 800 °C in 50 minutes
Well Size 35 mm 35 mm 36 mm
Block Depth 160 mm 148 mm 130 mm
Well Depth 157 mm 140 mm 80 mm
Standard insert
 INS-B		 2 x 4.5mm, 2 x 6.4mm,
1 x 9.5 mm, 1 x 8 mm		 2 x 4.5mm, 2 x 6.4mm,
1 x 9.5 mm, 1 x 8 mm		 4 x 8 mm
Physical dimension 34 x 30 x 17 cm 34 x 30 x 17 cm 34 x 30 x 17 cm
Power supply 110 or 220 Vac, 50/60 Hz 110 or 220 Vac, 50/60 Hz 110 or 220 Vac, 50/60 Hz
Weight 13.6 Kg 9.6 Kg 9.0 Kg
Interfaces RS-485 standard RS-485 standard RS-485 standard
Certificate Included Included Included



Download Technical Datasheet


Download Datasheet
